Payment & Shipping Terms:
|Product Name:||EN1906 Grade 4 Door Handle Lever Set||Material:||Stainless Steel AISI304/316|
|Standard:||EN1906 Class 4||Fire Test:||4 Hours Fire Test Of Metal Door Assemblies To EN1634-1:2014|
|Fixing:||Concealed Screw||Finish|Color:||Satin, Polished, Or Custom|

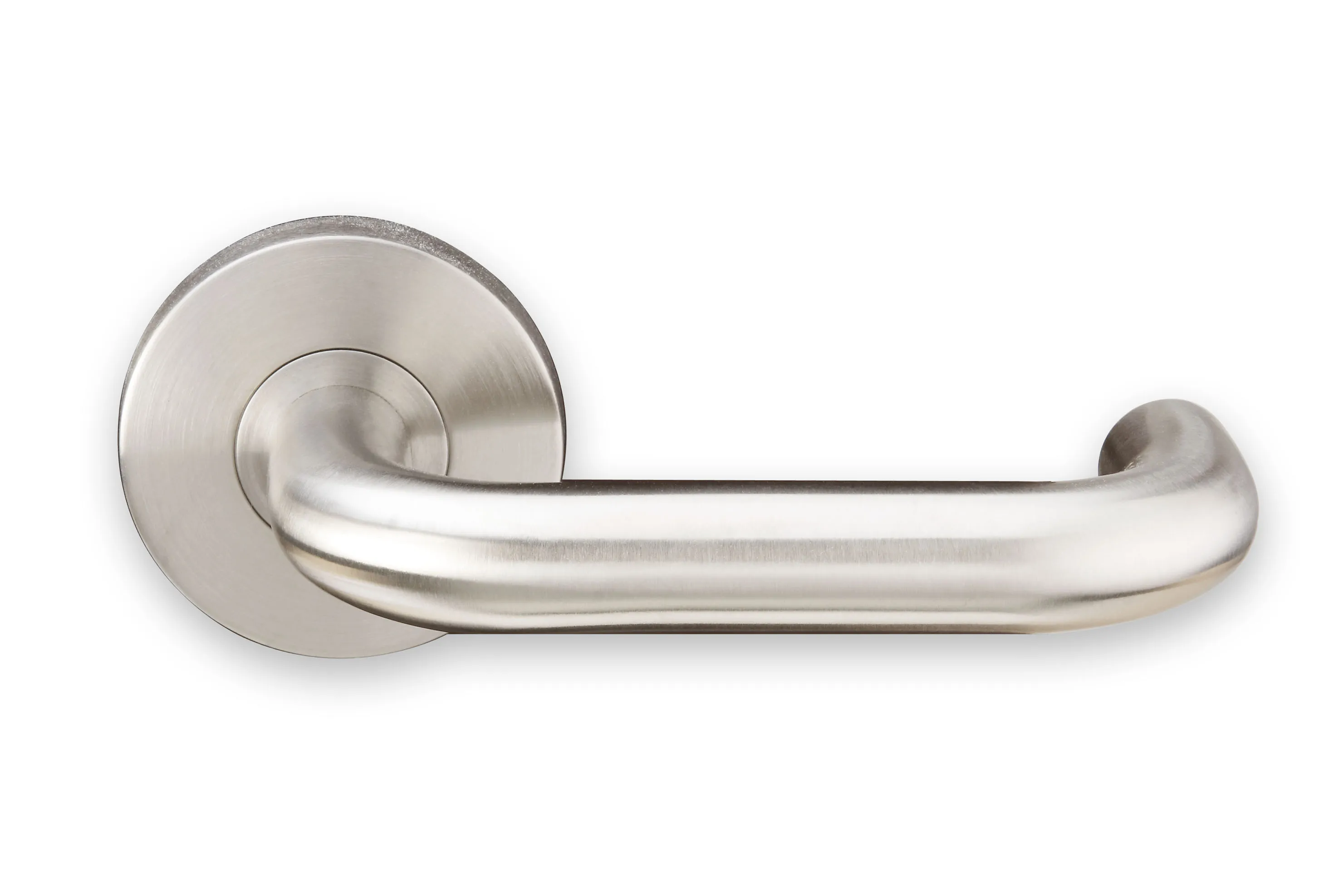

EN1906 Class 4 Outdoor Door Handles Concealed Screw Fixing Stainless Steel AISI304 / 316
EN1906 Grade 4 door handle lever set is built for high-frequency usage such as public buildings and commercial offices where potential misuse or deliberate abuse likely takes place.
Specifications and Features
- EN1906 Grade 4 tested and EN1634-1 fire rated
- Made of stainless steel AISI304 (AISI316 is available on request)
- Built with a robust spring mechanism
- Concealed screw fixing
- Inner rose indentation to secure the rose cover with a “clean” look on the handle
- Hexagonal countersunk and fixing lugs to assist thru-bolt fixing
- The architectural look achieved by minimum edge radius on rose cover
Tests and Standards
|Successfully type-tested for conformity to all of the requirements of EN1906: 2010 (including 240-hours of corrosion resistance requirement of EN 1670:2007)|
|EN1906 Grade 4 tested fire door handle lever has successfully passed 240-minutes fire test of metal door assemblies to EN 1634-1: 2014|
|All tests performed independently and certified by Exova/Warringtonfire/Warrington APT. Test reports and/or certificates are available on request
- Satin Stainless Steel (US32D/630)
- Polished Stainless Steel (US32/629)
- Satin PVD Titanium
- Bright PVD Titanium
*Other finishes available on request

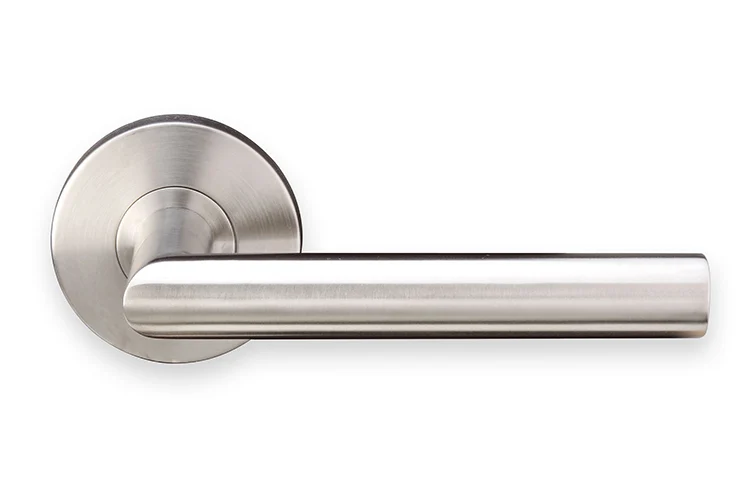

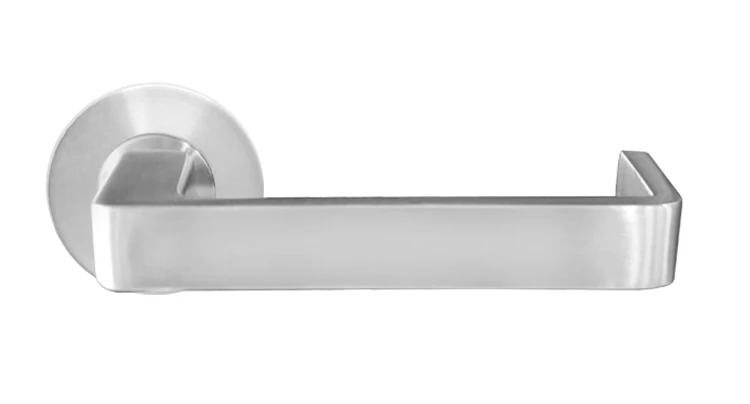

Hot EN1906 Grade 4 door handle lever sets

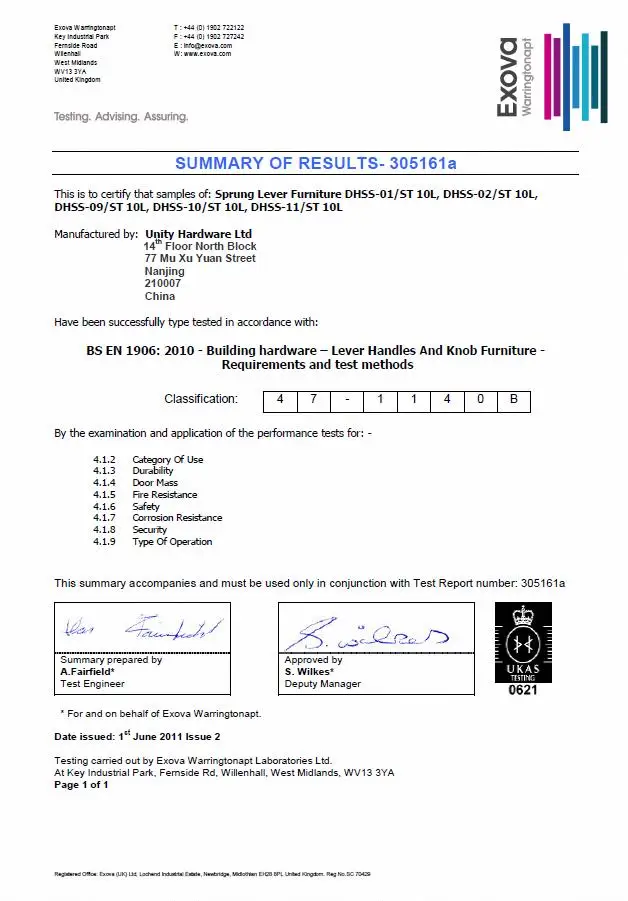

Certificates of UNITY EN1906 Grade 4 door handle lever set
Q: Are your company a factory or trading company?
A: UNITY started from a trading company, but now we have two factory plants to serve you.
As a manufacturer, we have more than 20 year's experience and are confident to offer you optimal manufacturing solutions.
Q: What kinds of certificates do you have?
A: UNITY have CE and UL certificate, all our product design follows up the international standard, such as the EN/CE, UL, ANSI standard.
Q: Do you accept OEM or ODM?
A: Yes, UNITY is professional in OEM and ODM with more than 20 year's experience. And UNITY has set up long-term cooperation with many famous brands home and abroad.
Q: How about your quality system?
A: As a factory, UNITY has been certified by ISO9001 and ISO14001 to well control our production and service quality, all steps under control are strictly processed according to these authoritative systems and standards.
Q: Can you send me a sample before placing an order? Is it free?
A: Yes, of course. UNITY will translate all your requirements into real products and then send you samples for your confirmation.
A sample is free, you just need to pay for the express cost.
Q: How many days do you need to prepare a sample?
A: Usually 2-5 days.
Q: What’s the stainless steel grade you are working on now?
A: We are working mostly in SUS304 and SUS316, some items can be SUS201 as well.
Any more information on further questions, please just feel free to contact us.
